ST-ETS23 Series

23
22
21
넳 넲

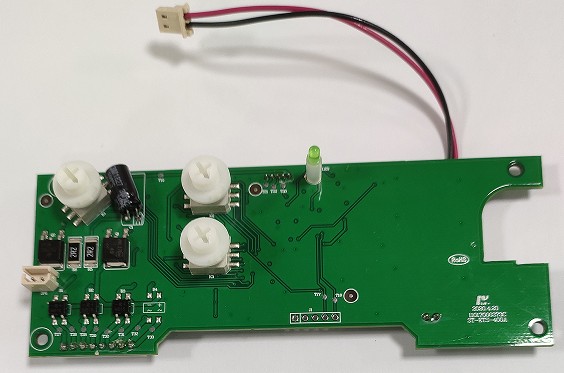

is the intelligent protection core component of the molded case circuit breaker for supporting Lexing power generation. It is suitable for power distribution protection to protect power distribution lines and power supply equipment from overload, short circuit and other faults.

Main Functions

protection function

■ overload long delay protection

■Short-circuit short-delay protection

■short-circuit instantaneous protection

■Neutral protection

■overload pre-alarm

Accessibility

■fault trip

■ Overload pre-alarm

■ Overload thermal memory

CommunicationsFunction

■MODBUSAgreement

User Interface

■Power Indication

■ Pre-alarm indication

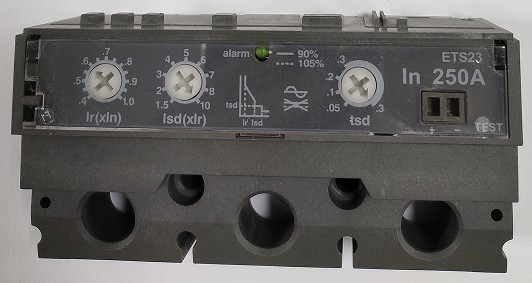

■ M type: the parameters are set by the coding switch, which is convenient and intuitive.

Rated parameters

Operating power:

transformer,When the three-phase current is greater than 0.2In and the single-phase current is greater than 0.4In, the controller can work normally;

Shelf Class:250A, 630A

Rated current:250A, 630A

Conform to standard:

GB14048.2 , IEC60947, GB/T22710

Product Details
